STANDARD VMC-500 Vertical Machining Centre
3-Axis CNC Vertical Machining Centre:
Machine standard features:
| MACHINE MODEL | VMC-500 |
|---|---|
| WORKTABLE SIZE | 800 x 260 mm |
| MAX. LOAD ON WORKTABLE | 200 kg |
| X / Y / Z -AXIS TRAVEL | 500 / 350 / 450 mm |

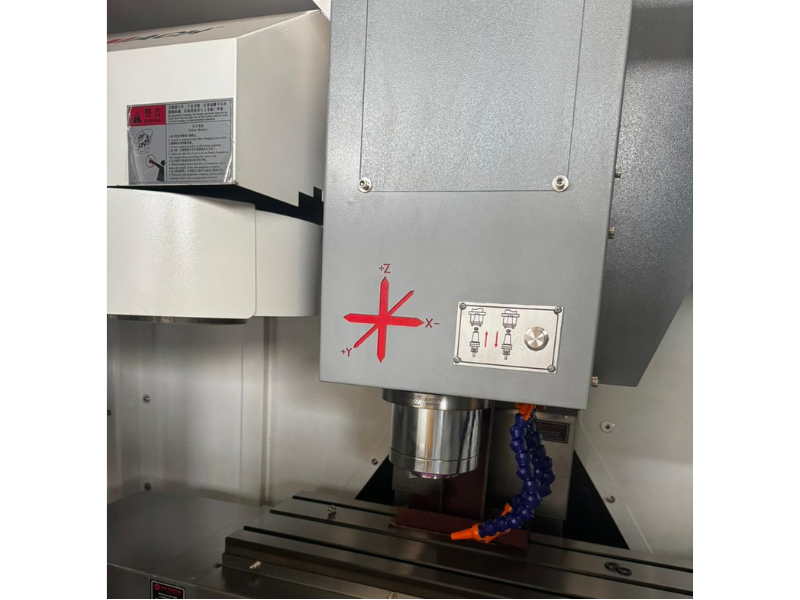

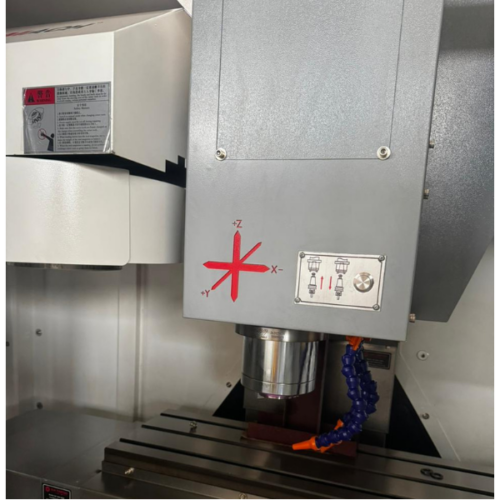

| SPINDLE TAPER | BT40-120 |
| SPINDLE MOTOR | 5.5 kW |
| MAX. SPINDLE SPEED | 8000 rpm |
| MAX. FEED SPEED | 1-10000 mm/min |
| RAPID FEED SPEED (X/Y/Z) | 24/24/24 mm/min |
| POSITIONING ACCURACY (XYZ) | +/- 0.005/300 mm |
| RE-POSITIONING ACCURACY (XYZ) | +/- 0.003/300 |
| TOOL MAGAZINE CAPACITY | 12 tools |
| TOOL CHANGING TIME (T-T) | 6 s |

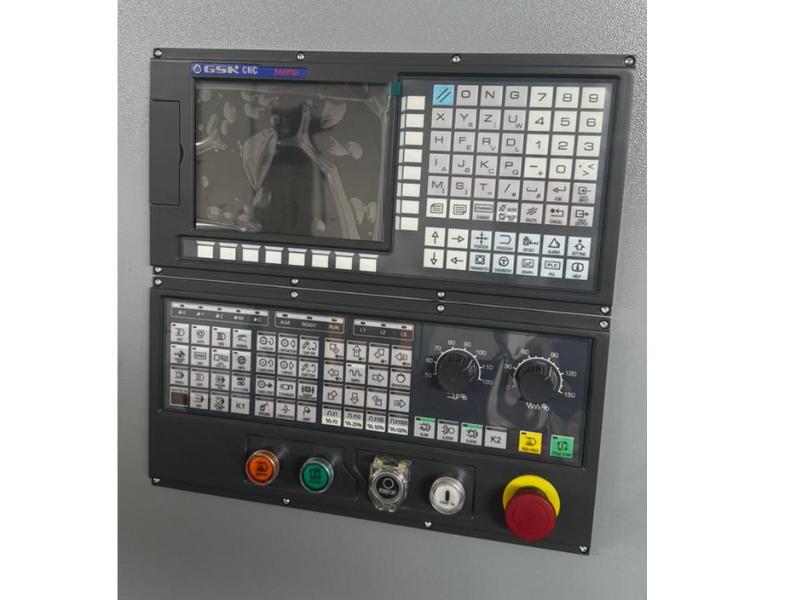

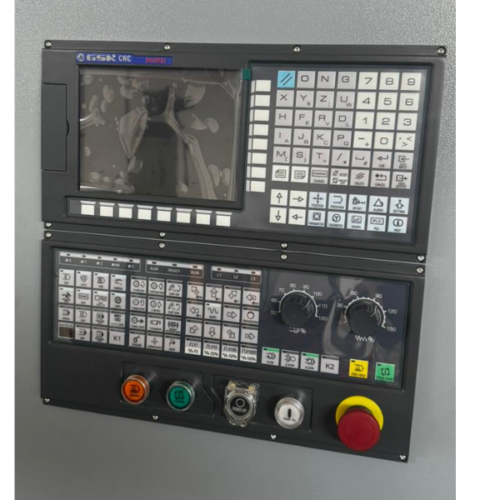

| CNC CONTROLLER | GSK 980MDi |
| MACHINE SIZE (L*W*H) | 2200*2100*2500 mm |
| MACHINE WEIGHT | 2000 kg |
